Centrifugal Sifter Turbowest

Vibrowest Turbowest Image

TURBOWEST Centrifugal Sifter

The TURBOWEST is particularly suitable for control sieving of solid products.
The Turbowest sturdy construction and ease of integration into existing plants, makes it an easy choice for sieving a large range of powders and granules, food, chemical, pharmaceutical and plastic products.
Successfully used for screening dry or damp bulk materials and is recommended whenever bagged products or hygroscopic materials are being processed. Lumps and conglomerations are broken gently without any product loss.
The Turbowest sieve is especially suited for gravity screening in line with pneumatic conveyors.

Operational Description

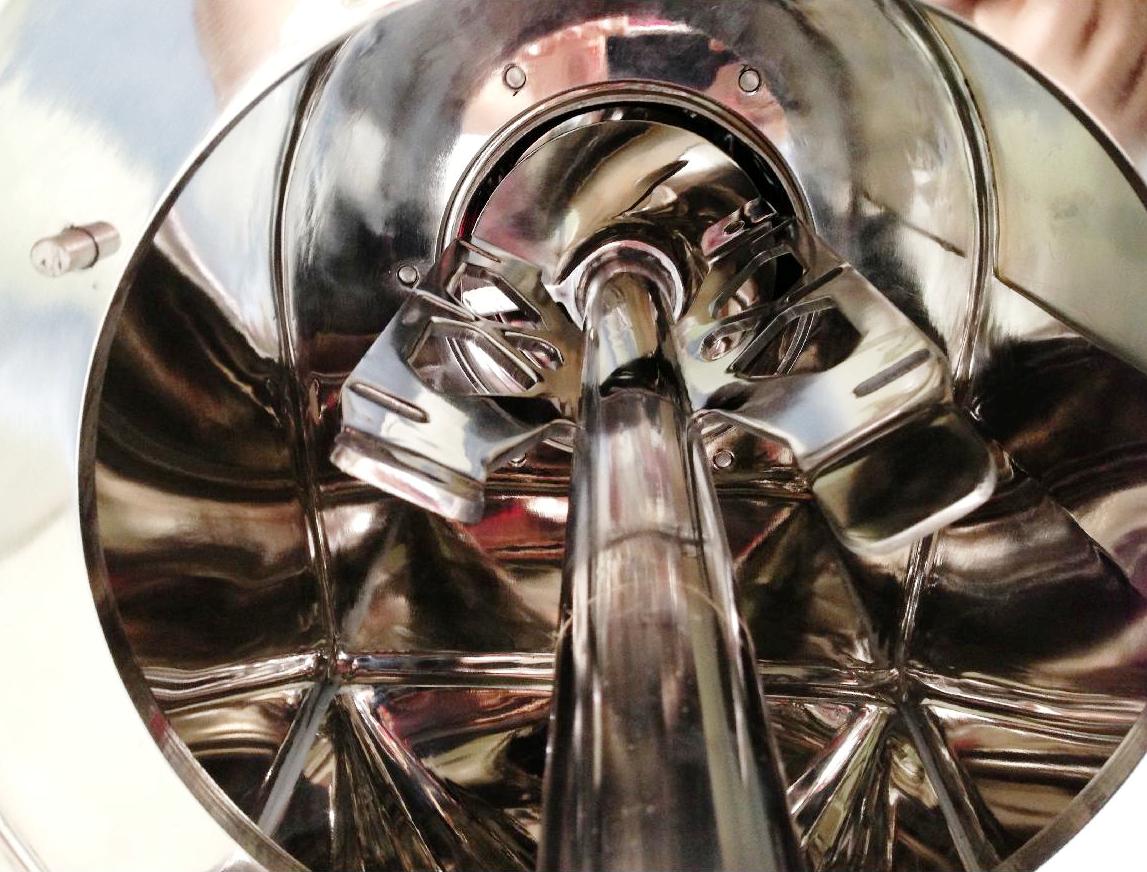

The product is fed into the sifter trough the inlet and the internal screw feeds material to be sifted into the sifting chamber. The materials is collected and distributed along the sifting surface by rotating paddles optional brushes, which forces the material through the screen.
Material feeding must be consistent avoiding any overfeeding. The separated fine material will discharge to the central outlet.
The central outlet is easily connected to any conveying system. The unsifted material will be discharged through the side outlet which is easy to connect to any conveying system.

Vibrowest Turbowest Image
Vibrowest Turbowest Image

Features & Benefits

– Gentle material handeling
– Robust construction
– Automatic material discharge
– No vibration
– Easy and quick change of screen mesh
– Inspection doors for quick cleaning of the machine
– High output
– Available in stainless steel AISI 304L-316L.
– Certification for ATEX, FDA-FOOD, GMP available
– Energy efficient
